Rigid Cable
The rigid cable is a solid or loosely twisted copper electrical conductor, which easily retains its shape after installation. Compared to flexible cable, it offers better mechanical strength and stable installation over time. According to the NORME IEC 60228, Rigid cables are mainly classified into two categories :
- Class 1 : massive conductor (a single strand), the most rigid and economical, ideal for fixed installation in conduit or panel (par ex. H07V-U, Nya).
- Class 2 : rigid stranded conductor (cable), slightly more flexible during installation while maintaining good mechanical strength (par ex. H07V-R, Nyy).
Thanks to this structure, the rigid cable adapts perfectly to long-term fixed installations. We particularly recommend it for residential buildings, tertiary and industrial, as well as for low voltage power distribution. At ZMS Cable, We offer a wide range of rigid cables complying with IEC standards, VDE et NF, tels that H07V-U, H07V-R, Nyy, N2xy, you n2xh. Our cables are available in different sections and insulation (PVC, XLPE), with solutions adapted to your electrical projects.
PVC insulated rigid cables
Cables with insulation and/or PVC sheath, Ideal for fixed inside or sheath installations. Good mechanical resistance, easy pose. Examples : H07V-U, H07V-R, Nyy
NYM cable
Structure :
NYM cable is made up of rigid copper drivers (class 1 or 2), PVC insulation and gray PVC outdoor sheath, in accordance with harmonized standards.
Applications :
It is ideal for fixed installations inside or outdoors protected. It is commonly used in residential buildings, tertiary and industrial for food feeding, Lights and equipment. Its robust construction guarantees good electrical safety and easy installation in the walls or conduits.

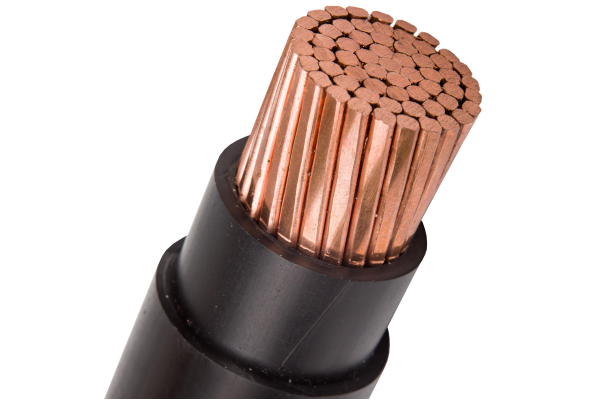

Câble Nyy
Structure :
The NYY cable is made up of copper drivers (class 1 or 2), PVC insulation and an outdoor black PVC sheath, resistant to shocks and chemical agents. It complies with DIN VDE standards 0276-603 / IEC 60502-1, which guarantees its safety and reliability in low voltage installations.
Applications :
Designed for fixed indoor installations, exterior and buried, It feeds networks, Equipment and infrastructure in residential buildings, tertiary and industrial.
XLPE insulated rigid cables
Cables with reticulated polyethylene insulation, offering better thermal hold (up to 90 ° C). Used for industrial or outdoor networks. Examples : N2xy, Na2xy, R2V
Exvb cable
Structure :
The EXVB cable is made up of rigid copper conductors (class 1 or 2), XLPE insulation (cross-linked polyethylene), of an inner PVC sheath, Galvanized steel armor, and a PVC outdoor sheath, Complies with standard NF C32-322.
Applications :
Designed for fixed outdoor installations or buried without additional mechanical protection, It is ideal for power supply to buildings, Industrial boxes or equipment.
R2V/RO2V cable/U1000R2V
Structure :
The R2V cable (or RO2V) is made up of a rigid copper driver, PVC insulation and PVC outdoor sheath, shock and humidity resistant. It complies with French and European standards.
Applications :
The R2V electric cable is ideal for fixed installations indoors and outdoors (with protection), especially in residential buildings, Industrial networks, electric motors connections and site equipment.

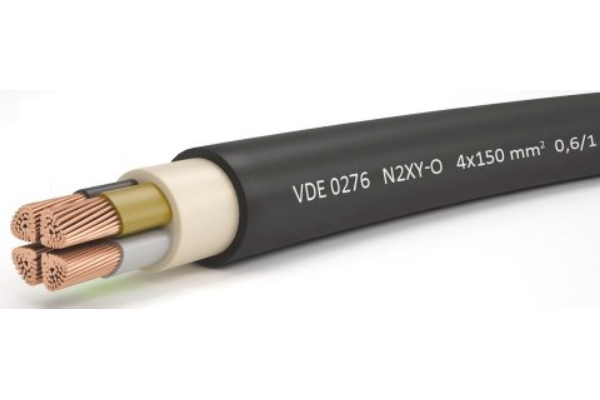

N2xy cable
Structure :
The N2xy cable is made up of copper conductors (class 1 or 2), XLPE insulation (cross-linked polyethylene), metallic armor in galvanized steel and an outdoor sheath without halogen (LSZH), Complies with IEC standards 60502-1 One your vde 0276-604.
Applications :
Designed for low and medium voltage fixed installations requiring high mechanical protection and increased fire safety, Suitable for underground networks, Industrial infrastructure and sensitive buildings.
Rigid cables without sheath (monoconductors)
Conductors without outer sheath, to be installed exclusively under conduit, chute or panel to benefit from mechanical protection. Economical and widely used solution for internal wiring of electrical panels and recessed installations. Examples : H07V-U, H07V-R, Nya, H05V-U
H07V-U cable
Structure :
The H07V-U cable is made up of a rigid copper driver (class 1) and PVC insulation (polyvinyl chloride) Complies with the harmonized standard.
Applications :
This cable is intended for fixed installations inside the buildings, in exposed or recessed conduits, for the distribution of energy in electrical tables, The sheaths, pipes or lighting equipment. It is not suitable for an external pose without protection.
| Characteristic | Value |
| Driver | Rigid copper Class 1 according to IEC 60228 |
| Isolation | PVC |
| Outer sheath | Without sheath |
| Tension nominale | 450/750 V |
| Service temperature | -5° C to +70 ° C |
| Number of souls | 1 |
| Available section | 1,5 has 35 mm² (or according to your range) |
| Colors available | Bleu, brun, noir, gris, rouge, green/yellow, etc. |
| Standards | IN 50525-2-31, IEC 60227, IEC 60228 |
| Application | Fixed installation in conduits, trunking and electrical panels |
| Nominal section (mm²) | Driver diameter (mm) | Insulation thickness (mm) | Outside diameter Approx. (mm) | Max resistance. at 20 ° C (Ω/km) | Eligible intensity (A)* | Weight of copper (kg/km) | Poids approx. cable (kg/km) |
| 1.5 | 1.38 | 0.7 | 2.8 | 12.1 | 18 | 13.4 | 21 |
| 2.5 | 1.78 | 0.8 | 3.4 | 7.41 | 24 | 22.2 | 33 |
| 4 | 2.25 | 0.8 | 4 | 4.61 | 32 | 35.6 | 50 |
| 6 | 2.76 | 0.8 | 4.6 | 3.08 | 41 | 53.4 | 72 |
| 10 | 3.57 | 1 | 5.8 | 1.83 | 57 | 89 | 118 |
| 16 | 4.51 | 1 | 6.8 | 1.15 | 76 | 142.4 | 185 |
| 25 | 5.64 | 1.2 | 8.1 | 0.727 | 101 | 222.5 | 285 |
| 35 | 6.68 | 1.2 | 9.3 | 0.524 | 125 | 311.5 | 390 |
H07V-R cable
Structure :
The H07V-R cable is a rigid class copper driver 2 (multibrins), With PVC insulation (polyvinyl chloride) Compliant with IEC standard 60227.
Applications :
Used in residential buildings, tertiary and industrial for the distribution of low -voltage energy. Its moderate flexibility facilitates installation in complex paths while offering good mechanical outfit.
It is designed for fixed installations in electrical conduits or tables. Suitable for indoor installations, in sheaths, in table, or in dry partition.
Nya
Structure :
The NYA cable consists of a rigid copper driver (class 1), Surrounded by PVC insulation. Without outdoor sheath, It is intended for protected installations and meets the IEC standard 60227-3.
Applications :
Used in low voltage electrical networks, The Nya cable is installed in the conduits, distribution tables and interior cable paths. It is widely deployed in residential buildings, commercial and industrial, especially in African and Asian markets.

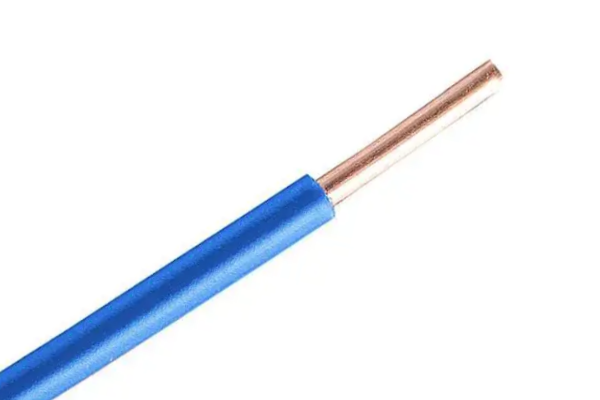

H05V-U
Structure :
The H05V-U cable is made up of a massive copper driver (class 1) and PVC insulation, Without outdoor sheath. It complies with IEC standard 60227-3 / VDE 0281-3.
Applications :
It is intended for fixed electrical installations inside the buildings, especially in distribution tables, conduits and devices under nominal tension of 300/500 V. The H05V-U cable is ideal for lighting circuits and internal connections in residential and tertiary environments.
Rigid halogen cables
Low smoke cables, halogen-free, adapted to public places, hospitals, tunnels. Compliant with fire safety requirements. Examples : N2j, H07Z-U, H07Z-R
N2XH cable
Structure :
The N2XH cable is a cable made up of copper conductors (class 1 or 2), XLPE insulation (cross-linked polyethylene), and an outdoor sheath Lszh (halogen-free, low smoke), Complies with IEC standards 60502-1 One your vde 0276-604.
Applications :
Designed for low -voltage inside fixed installations, especially in areas with high attendance (ERP, hospitals, schools), The N2XH cable guarantees a low smoke emission and no toxic gas in the event of a fire. It is perfectly suitable for projects requiring a high level of fire safety.
N2XSY cable
Structure :
The N2XSY cable is a cable made up of copper conductors (class 1 or 2), XLPE insulation (cross-linked polyethylene), metal armor in copper or aluminum and an outer sheath without halogen (LSZH), Complies with IEC standards 60502-1 One your vde 0276-604.
Applications :
Designed for fixed installations in low and medium voltage, The N2XSY cable is particularly suitable for environments requiring high mechanical protection and reinforced fire safety, such as public buildings, industrial infrastructure and underground networks.

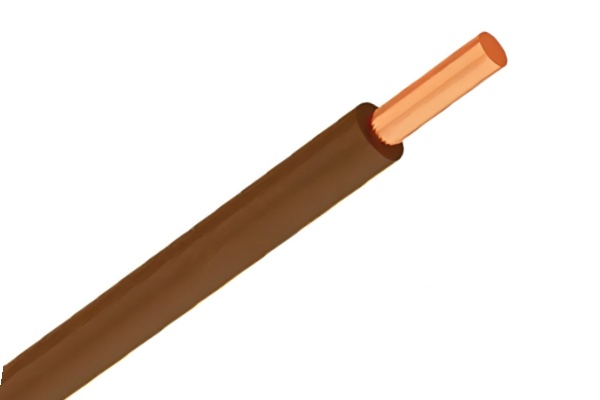

H07Z cable
Structure :
The H07Z cable is made up of a massive copper driver (class 1) and PVC insulation without halogen (LSZH), Compliant with IEC standard 60227.
Applications :
Ideal for fixed indoor installations requiring a low smoke emission in the event of a fire, especially in public and tertiary buildings.
Rigid cable or flexible cable : how to choose ?
| Rigid Cable | Flexible Cable | |
| Structure | Solid or loosely twisted conductor (class 1-2) | Fine multi-twisted wires (class 5-6) |
| Flexibility | Low — maintains its shape | High — adapts to curvatures |
| Recommended installation | Fixe, conduit, sheath or table | Mobile, complex paths, moving equipment |
| Typical applications | Residential buildings, tertiary, industrial | Machines mobiles, robots, household appliances |
| Examples | H07V-U, Nyy, N2xy | H07V-K, H05VV-F |
ZMS Consulting :
From a technical point of view, the rigid cable offers better mechanical strength and generally lower cost for long lengths, while the flexible cable facilitates installation in confined spaces or in the presence of repeated movements. For the same project, it is not uncommon to combine the two : rigid for main distribution, flexible for final connections.
For installations requiring more flexibility, check out our flexible cables.
FAQ – Rigid Cable
Class 1 or Class 2 : how to choose between the two ?
The choice mainly depends on the installation method and the budget.. The class 1 (massive soul) is the most economical to manufacture and offers excellent mechanical stability, but it is more difficult to handle on large sections. The class 2 (wired soul) costs slightly more to produce, but it is easier to pull into the conduits, especially on large sections or paths with several bends.
ZMS Consulting : For wiring panels and small sections, the class 1 remains the standard. As soon as the section exceeds 16-25 mm² or that the route has many bends, the class 2 significantly facilitates installation.
Can rigid cable be buried directly in the ground ?
Non, not in the general case. Rigid cables like and H07V-U are designed for installation under conduit, chute or board, and do not have the mechanical protection necessary for direct burial. Some sheathed references like le NYY tolerate installation in a buried sheath according to local regulations, but remain to be distinguished from a cable designed specifically for direct burial.
ZMS Consulting : For buried installation without sheath, we recommend armored cable, whose construction (metal armor, reinforced sheath) is specifically designed to withstand ground stress.
What is the difference between H07V-U and NYY ?
And H07V-U is a rigid single-wire conductor with PVC insulation, Without outdoor sheath. Its rated voltage is 450/750 V and its design is suitable for installations where the conductor is already protected by a conduit, a chute or equipment.
Le NYY is a multi-conductor power cable, with insulation and PVC outer sheath, generally used to 0,6/1 kV. Its sheath provides additional protection against mechanical stress and the installation environment.
ZMS Consulting : don't choose only based on the number of drivers. First check the rated voltage, the method of installation and the level of mechanical protection required. The H07V-U is a conductor to be integrated into a protected wiring system, while the NYY is a complete cable solution with its own jacket. If the installation requires a cable that can be laid without additional mechanical protection, the H07V-U is generally not the appropriate choice.
For a detailed comparison (isolation, sheath, recommended installation), consult the complete table on page H07V-U。
Which section (mm²) is available for ZMS rigid cables ?
According to the standard IEC 60228, section range differs depending on class : the class 1 (massive soul) covers sections of 0,5 mm² à 1200 mm², while the class 2 (wired soul) allows you to go up to 2500 mm² for large distribution sections. ZMS CABLE manufactures rigid cables that comply with IEC and other standards. We can also manufacture tailor -made cables to meet your residential installation needs, commercial and industrial.
ZMS Consulting : For weak sections (panel wiring, indoor distribution), the class 1 is the standard choice. For large sections in low voltage distribution, the class 2 offers more manufacturing and installation flexibility.
Does the rigid cable comply with European standards (CE, IEC, VDE, NF) ?
Oui. Our rigid cables are manufactured in accordance with standards IEC (IEC 60227, IEC 60502-1), VDE (From vde 0276-604) and N.F. (NF C 32-321 for the U-1000 R2V), according to the reference concerned. Each batch is tested before shipping, with test reports available on request, and our cables bear the CE marking when required by the regulations of the destination market.
ZMS Consulting : Tell us the standard required by your project or your country of destination (France, zone CEDEAO, etc.) — we will confirm the corresponding ZMS reference and the available certificates.
Why choose the rigid cables of ZMS Cable ?
- Compliance with international standards : All our rigid cables are certified IEC, VDE, NF or other standards required according to the markets.
- Wide choice of references : PVC, XLPE, halogen-free, with or without sheath - to respond to all types of fixed installations.
- Higher manufacturing quality : High purity copper or aluminum drivers, Excellent mechanical and electric resistance.
- Suitable for all your electrical projects : Whether for a residential building, an industrial site or a tertiary network, Our rigid electric cables cover all the needs of professionals in the sector.
- Excellent value for money for French-speaking markets : Our cables are competitive and available in large quantities, with constant quality for your projects in Africa, in Europe or overseas.
Our professional services
By choosing high quality overhead cables, you offer your teams and facilities a higher level of security — and this is precisely what ZMS services aim to guarantee.
ZMS designs and produces tailor-made cables according to your technical specifications, with customization of the marking, Colors and packaging. Our products can be adapted to meet international standards (GB, IEC, BS, NFC, ASTM, FROM, etc.) and the specific requirements of each project.
All cables are tested before shipment and comply with CE certifications, IEC and ISO. Detailed test reports can be provided upon request to ensure the reliability and safety of your installations.

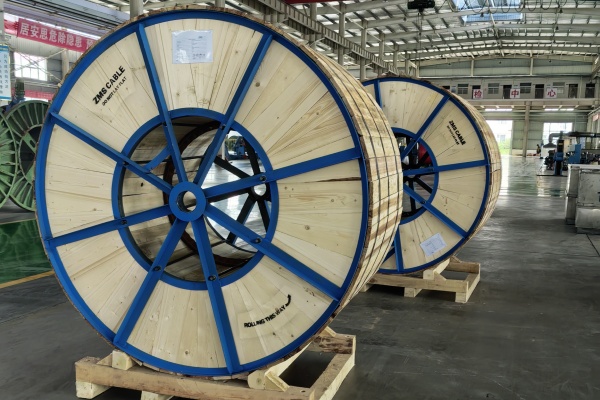

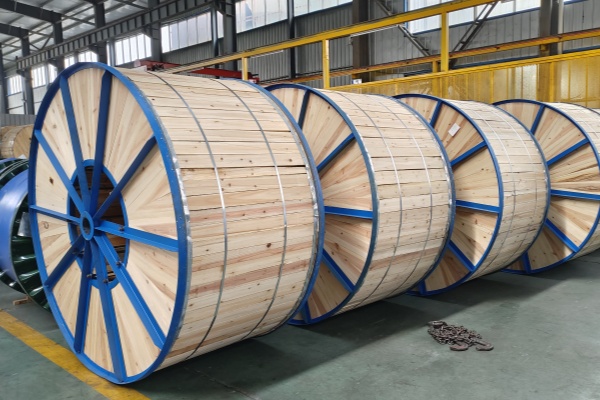

ZMS cables are carefully packaged on wooden spools, corrugated cardboard boxes or metal drums. Ends are tightly sealed with plastic wrap or BOPP to prevent moisture. Exterior marking can be personalized with waterproof materials.
