Shielded Cable
THE armored cables Products by ZMS offer excellent protection against electromagnetic interference (EMI) and radiofrequencies disturbances (RFI), guaranteeing stable transmission in complex electrical environments.
We offer a wide range of armored cables with various specifications and structures, Made from high quality materials, Robust and durable.
Furthermore, We Let's offer a personalization service To meet the specific needs of each project.
Types of armored cables available at ZMS Cable
Shield Types and Configurations
Single shielded cable
- Structure :
The simple shielding composed of a copper braid or a aluminum tape, surrounding the drivers of the armored cable to provide basic EMI protection. - Features :
Effective protection against electromagnetic interference (EMI) in standard industrial environments. Shielding generally made by copper braid or aluminum tape, providing stable EMI protection with good flexibility. - Typical applications :
Used in control systems, industrial automation and installations where EMI interference remains moderate. - ZMS CABLE expert advice :
The single shielded cable is recommended for standard control and signal installations. In the presence of power equipment or variators, and double shielded cable is often preferable.
Double shielded cable
- Structure :
Two layers of armor combined, generally aluminum tape + copper braid, forming a double shielded shielded cable for enhanced EMI protection. - Features :
Combination of two screens (often aluminum tape + copper braid) greatly improving the attenuation of perturbations EMI/RFI. Configuration offering a 360° shielding more efficient and better signal stability in disrupted industrial environments. - Typical applications :
Suitable for frequency variators, to industrial motors and systems ofindustrial automation sensitive to interference. - ZMS CABLE expert advice :
The double shielded cable is recommended when cables are installed near power equipment. For very sensitive signals or very disturbed environments, and fully shielded cable may be preferable.

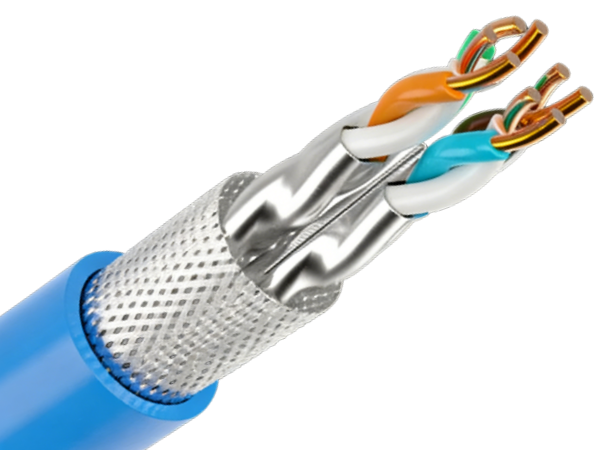

Fully shielded cable
- Structure :
Almost covering armor 100 % cable, generally with a high density copper braid or a combination of shielding providing maximum EMI protection. - Features :
Very high shielding coverage thanks to high coverage copper braid (>85 %) or a combination of metal shields. Ensures a 360° shielding continu, guaranteeing maximum protection against electromagnetic interference. - Typical applications :
Used for precision instrumentation, heavily disturbed measuring systems and industrial installations. - ZMS CABLE expert advice :
The fully shielded cable is recommended for critical applications where signal stability is essential. For standard industrial installations, and single or double shielded cable is often sufficient and more economical.

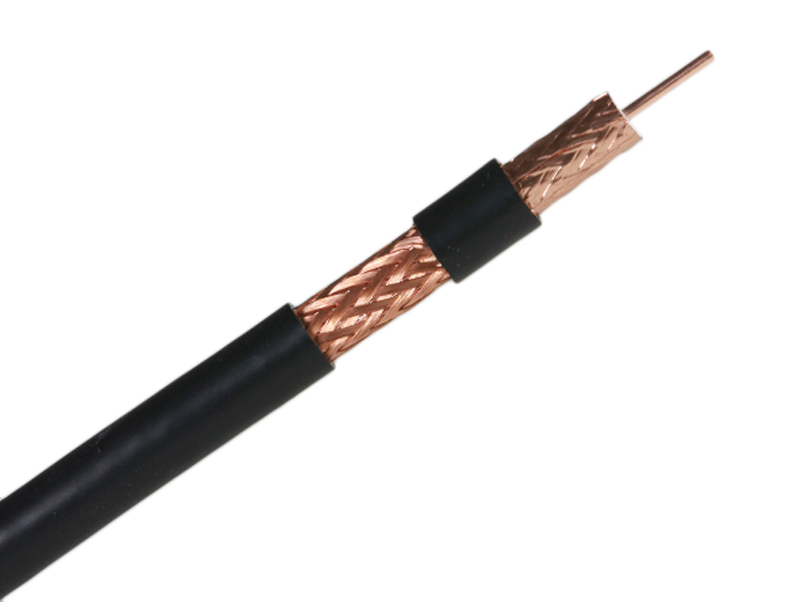

Armored braid cable
- Braided copper wire shield - High efficiency EMI/RFI
- Conductivity greater than aluminum
- More robust and more durable - ideal for intensive environments
- Recommended for VFDs, Corporations and control systems
Armored aluminum leaf cable
- Laded aluminum ribbon shield - high frequency EMI coverage 100%
- Light, economic, and easy to produce in large series.
- Excellent performance for the transmission of digital or analog signals
- Recommended for communication networks, Videosurveillance and tertiary wiring
Flexible armored cables (electromagnetic protection)
- Flexible armored cables are flexible cables with metal shielding, Designed to effectively block electromagnetic interference.
- They guarantee a stable and secure signal transmission, even in disturbed environments.
- Their flexibility simplifies the installation while ensuring excellent longevity.
- Our experts recommend flexible armored cables for communication and sensitive data systems, industrial environments with high electromagnetic interference, Medical equipment, of measurement and automation, as well as electrical installations in technological buildings and infrastructure.
Shielded cables by area of application
The different industrial environments have different requirements in terms of electromagnetic compatibility, of mechanical resistance, signal stability, etc. cables. Here is a classification and a description of the characteristics of armored cables for the main industrial scenarios :
Armored cable for industrial automation
- Industrial automation equipment exchange a large number of low -voltage control signals, sensitive to interference.
- The armored cables intended for these applications offer excellent protection against cross interference (diaphonie) while remaining flexible and easy to install in restricted and complex environments.
- Recommended for industrial robots, conveyor lines and PLC networks requiring rapid and reliable transmission.
Armored cable for instrumentation and control
- Instrumentation cables mainly transmit analog -tension/current current signals and are extremely sensitive to external interference.
- This type of cable adopts a low -capacity and low noise structure to guarantee signal accuracy and constitutes an essential link in high precision control systems.
- Recommended for demanding environments such as processes monitoring, Temperature sensors, pressure or flow, as well as the wiring of DCS systems.
Armored cable for communication networks
- Digital communications require a large bandwidth, a low error rate and rapid transmission.
- These cables are specially designed to provide excellent protection against high frequency interference and guarantee signal integrity.
- They often integrate a structure into twisted pairs to optimize performance in a disturbed environment.
- Recommended for industrial Ethernet networks, video surveillance systems and RS485 communication buses.
Armored cable for railway and tunnels environments
- Its structure is robust, flame retardant and humidity resistant, Among other properties, In accordance with rail transport regulations.
- It maintains the stability of the signal in environments with strong vibrations, with high humidity and strong interference.
- Recommended for wiring rail signals, Metro projects, lighting and communication in tunnels, as well as underground wiring.
Shielded cables according to designations and standards
Sy cable, Cy armored
- These cables comply with BS standards 6500 / Bs one 50525. Widely used in automation, Machine manufacturing and tertiary wiring in Europe.
- And : control cable with galvanized steel wire braid – excellent mechanical protection.
- CY : Armored cable by copper braid - effective protection against EMI interference.
KVVP cable, Kvvrp, Other Asian models
- KVVP : Copper braid shield, Rigid cable intended for a fixed installation. Offers static EMI protection in static environment (gaines, technical trenches).
- Kvvrp : Shield by copper or tinned copper braid, Flexible cable designed for installations with frequent movements or complex courses (ex. Internal equipment wiring). Better mechanical resistance and great flexibility.
- Widely used in industrial control systems in China and in several Asian countries such as Vietnam or Thailand.
Cable in accordance with the CEI/IEC standard (ex: IEC 60228, IEC 60502)
- ZMS produces armored cables in accordance with international standards such as IEC, BS to guarantee quality, Security and performance.
- Compliance with European and international requirements for industrial and tertiary facilities can be ensured.
- Furthermore, ZMS offers OEM/ODM cable and service personalization services to meet all your requirements..
Shielded cables according to conductor structure
Multiconductor armored cable
- Composed of several drivers isolated under the same sheath, This type of cable allows the simultaneous transmission of several signals.
- It offers excellent organization of circuits, Reduces the risk of cross parasites, and simplifies the installation.
- Ideal for control systems, sensor signals or audio/video equipment.
Shielded shields with twisted pairs
- Each pair is twisted to compensate for electromagnetic interference, then shielded overall or individually.
- This structure guarantees excellent CEM immunity, particularly effective for differential transmission and sensitive low voltage signals.
- Recommended for field buses (RS485, PROFIBUS), analog sensors or industrial communication networks.
Armored cable with flexible copper driver
- Uses high-flexibility multi-brings drivers, Compliant with IEC standard 60228 - class 5.
- Ideal for applications requiring frequent movements or reduced curvature rays，while ensuring good conductivity and sustainability.
- Perfect for chains cable holders, robotic arms and compact installations.
ZMS armored cable settings
| AWG model | Driver | Isolation | Jacket | |||
| Driver diameter | Maximum resistance to 20 °C | Thickness | Outer diameter (OF) | Thickness | Min diameter. | |
| (NO/mm) | MΩ/km | mm | mm | mm | mm | |
| 30 | 7/0.1 | 381 | 0.4 | 1.1 | 0.5 | 2.1 |
| 28 | 7/0.127 | 239 | 0.4 | 1.2 | 0.5 | 2.2 |
| 26 | 7/0.16 | 150 | 0.4 | 1.3 | 0.5 | 2.3 |
| 24 | 11/0.16 | 942 | 0.4 | 1.4 | 0.5 | 2.4 |
| 22 | 17/0.6 | 59.4 | 0.4 | 1.55 | 0.5 | 2.55 |
| 20 | 26/0.16 | 36.7 | 0.44 | 1.80 | 0.55 | 2.85 |
| 18 | 41/0.16 | 23.2 | 0.44 | 2.05 | 0.55 | 3.5 |
| 16 | 26/0.254 | 14.6 | 0.46 | 2.4 | 0.56 | 3.8 |
Advantages of ZMS Cable armored cables
Superior quality : All our cables are made with high quality materials to ensure their longevity and robustness.
Custom options : We offer tailor -made solutions adapted to your specific needs.
Compliance with standards : All our products meet international standards, including ISO and this.
Dedicated technical support : A team of experts ready to support you at each stage of your project.
ZMS company service
Soverproduction service
ZMS has a wide range of armored cable and conductors. We provide thoughtful services and professional project solutions to everyone who needs them.
Squality certification services
ZMS cables are made in accordance with GB standards, IEC, BS, NFC, ASTM, DIN and other international standards. Our technical team can customize cable products that meet your requirements based on your needs.
Sprofessional customer service
ZMS provides free professional consultation services to provide you with one-stop project solution services and rapid product delivery solutions.
Sdelivery and shipping services
ZMS supplies high quality armored cable, but also good delivery solutions. While ensuring the safety of product delivery, we provide the best packaging and transportation solutions, thereby significantly reducing customers' transportation costs.
Epackaging of ZMS
ZMS cables are packaged in wooden spools, corrugated cardboard boxes and reels. Cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect cable ends from moisture. We can print the required markings on the exterior of the drum using a waterproof material, according to customer requirements.
FAQ – Shielded Cables
1. What is the difference between shielded cable and unshielded cable ?
A shielded cable has a metallic layer (copper or aluminum) which protects against electromagnetic interference (EMI).
An unshielded cable (UTP) does not have this protection, but it is more economical and flexible to install.
Shielded cable is recommended for industrial or sensitive environments, while UTP is sufficient for a classic home network.
2. Which is better between STP cable and FTP cable ?
The STP (Shielded Twisted Pair) protects each pair of wires individually, providing better isolation in areas with high interference.
FTP (Foiled Twisted Pair) has overall shielding, lighter and easier to install.
FTP is often the best choice for offices and tertiary buildings, while the STP is suitable for demanding industrial installations.
3. Can a shielded cable be used without grounding ?
Non. Without earthing, the shielding does not work properly and can amplify disturbances instead of reducing them.
To guarantee the performance of the shielded cable, it must always be earthed according to good installation practices.
4. Is a shielded cable needed for a home network? ?
In most cases, an unshielded cable (UTP) enough for a home network.
However, a shielded FTP cable can be useful if your installation is close to sources of electrical interference. (high voltage lines, powerful devices, etc.).
5. Why shielded grounded cable can sometimes perform worse ?
This often comes from poor grounding creating a ground loop.
Incorrect wiring can cause extraneous noise.
A properly installed shielded cable always improves signal stability and speed.
